BR-T 140℃ AC Thermal Protector Na May PTC 17AM Thermal Protector
BR-T Thermal Protector Application
Itinatampok ang mga thermal protector ng BR-T series para sa maliit na sukat, pagiging sensitibo, perpektong pagganap ng air-tightness, katumpakan. Pangunahing ginagamit ito para sa fractional 0.5hp na motor o mas kaunti, mga transformer, rectifier, battery pack, at iba pang gamit sa bahay.
BR-T Thermal Protector Structure
Ang BR series thermal protector ay isang temperature automatic response device at ito ay temperatura, kasalukuyang double protective equipment din. Kapag ang init na nabuo ng pagtaas ng temperatura mula sa mga protektadong appliances ay nagpapadala sa dobleng elemento ng metal, at umabot sa halaga ng temperatura ng naka-iskedyul na paggalaw, ang double-metal na elemento ay agad na gagalaw upang ang kontak ay patayin at ang circuit ay mapuputol. . Kapag bumaba ang temperatura sa na-rate na halaga ng temperatura ng reposition, ang bimetal na elemento ay babalik sa orihinal nitong estado, ang gumagalaw na contact ay isasara at ang circuit ay naka-on.
BR-T Thermal Protector Bukas na temperatura:
50~ 150 na may tolerance na 5°C; sa 5°C na pagtaas.
Parameter
Pag-uuri | L | W | H | Puna |
BR-T XXX | 16 | 6.2 | 3 | Metal Case, insulation sleeve |
BR-T XXX H | 16.5 | 6.8 | 3.6 | Metal Case, insulation sleeve |
BR-S XXX | 16 | 6.5 | 3.4 | PBT Plastic Case |

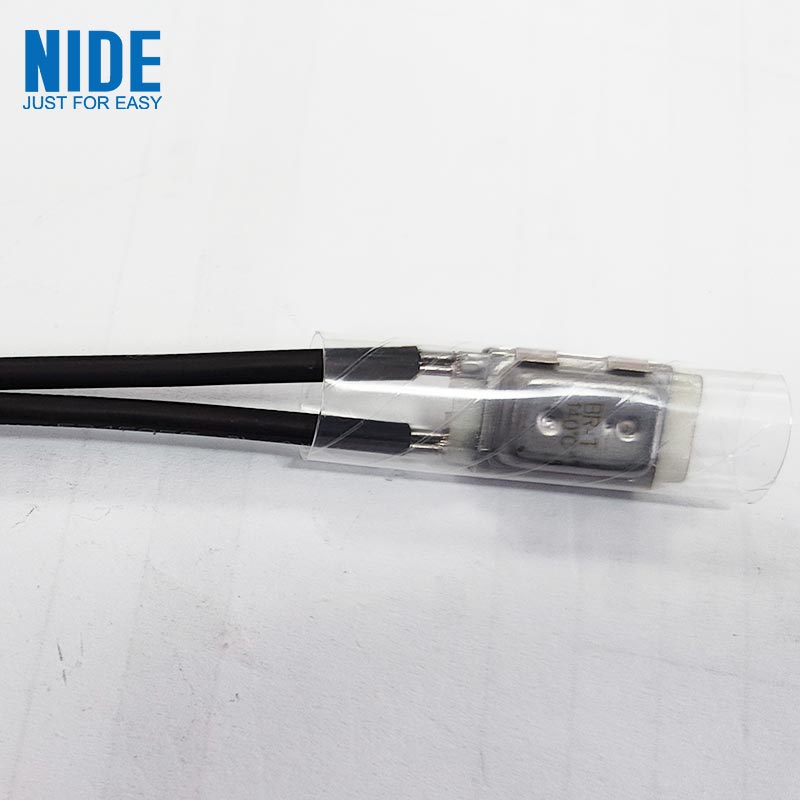

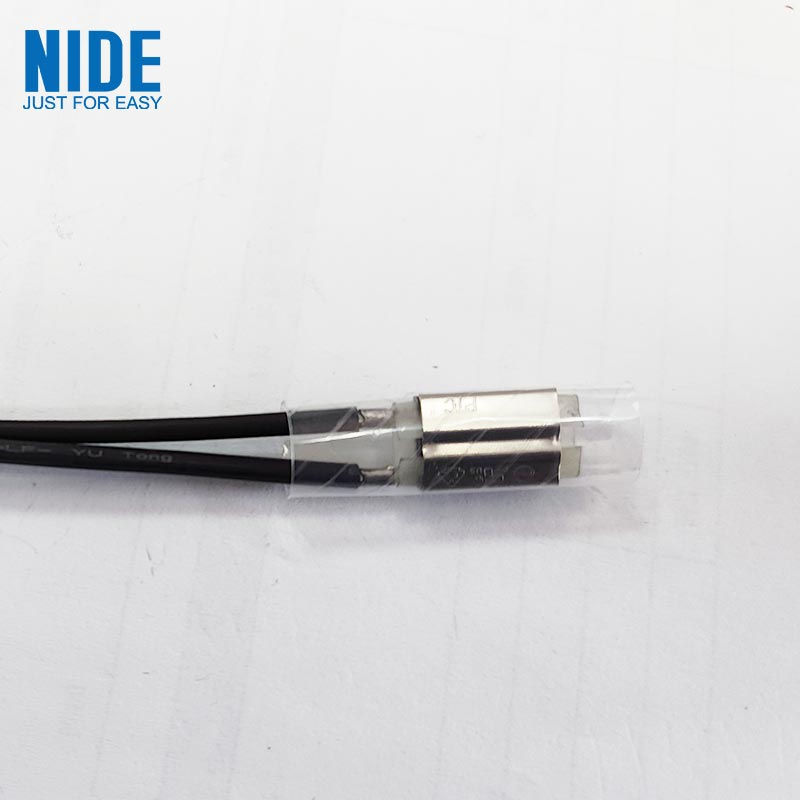

Larawan ng thermal protector
