AC motor commutator 24P armature commutator 30.3*12*23.5mm
1. AC Motor Commutator Panimula
1. Resin Surface walang bula, basag, atbp.
2. Lakas ng dielectric: bar-bar 500V/AC, 1S, bar-shaft 3000VAC,60S, walang crack o flash
3. Insulation resistance: temperatura ng kwarto, 500V/DC Mega meter, insulation resistance>
100MΩ
4.Unmarked tolerance accord sa GB/T1804-m
5. Electric pick gun commutator resistance: 500V, higit sa 50MΩ
6. Spin test: gawin ang spin test para sa commutator sa ilalim ng 140 centigrade, ang bilis ay 5000RPM, ang pagsubok ay nagpapatuloy ng 3min. Pagkatapos ng pagsubok, ang paglihis ng panlabas na diameter ay mas mababa sa 0.015, ang paglihis sa pagitan ng bar at bar ay mas mababa sa 0.005.
7. Voltage test: bar to bar 500V, bar to bore 1500V, without breakdown and flashing.
2.AC Motor Commutator Parameter (Detalye)
Pangalan ng Produkto: | Electric pick gun AC motor commutator |
Mga materyales: | 0.03% o 0.08% sliver copper o customized |
Sukat: | 30.3*12*23.5mm o Na-customize |
Uri ng Commutator: | Uri ng hook/uri ng Raiser |
Application: | Industriya ng sasakyan, mga power tool, mga gamit sa bahay, at iba pang mga motor |
Package: | Angkop para sa transportasyon sa lupa at dagat |
Kapasidad ng produksyon: | 1000000pcs/buwan |
3. Tampok At Aplikasyon ng AC Motor Commutator
Ang Hook Commutator ay angkop para sa Universal motor, Industrial motor, Household Appliances, Car, Power Tools, Electric Bikes at Motorsiklo.

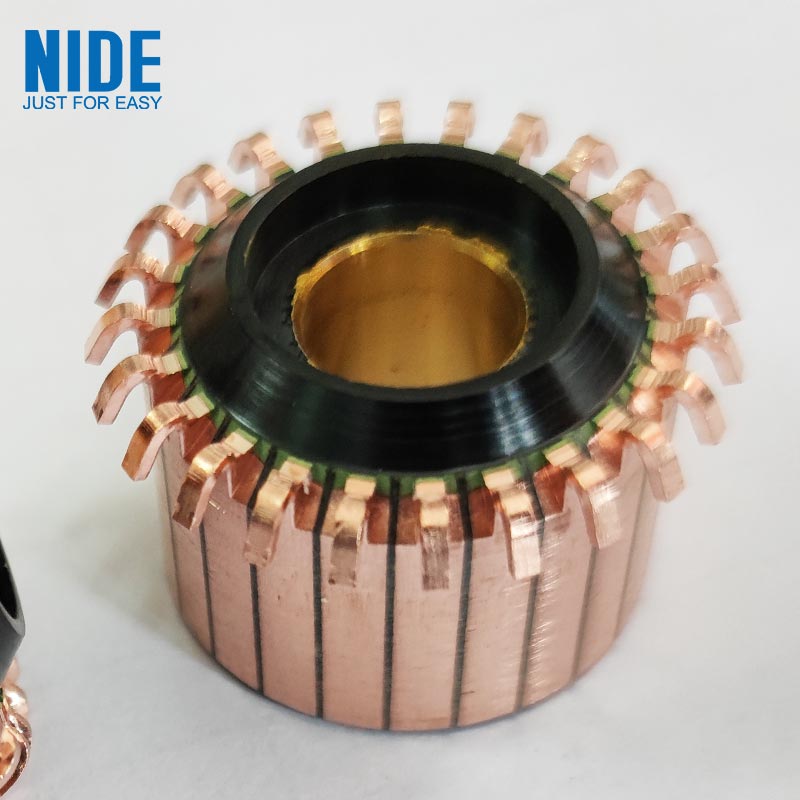

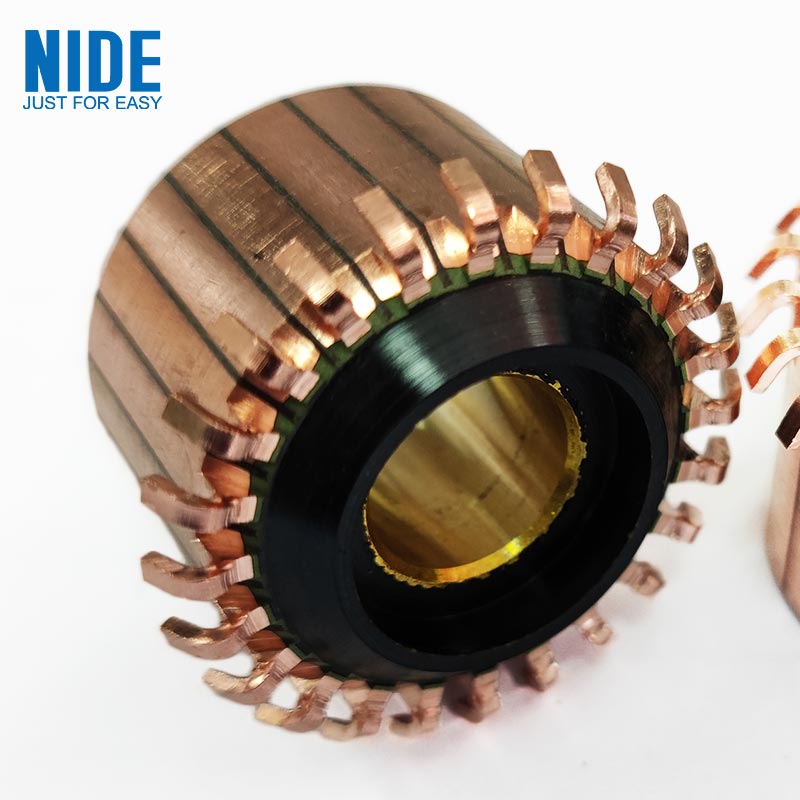

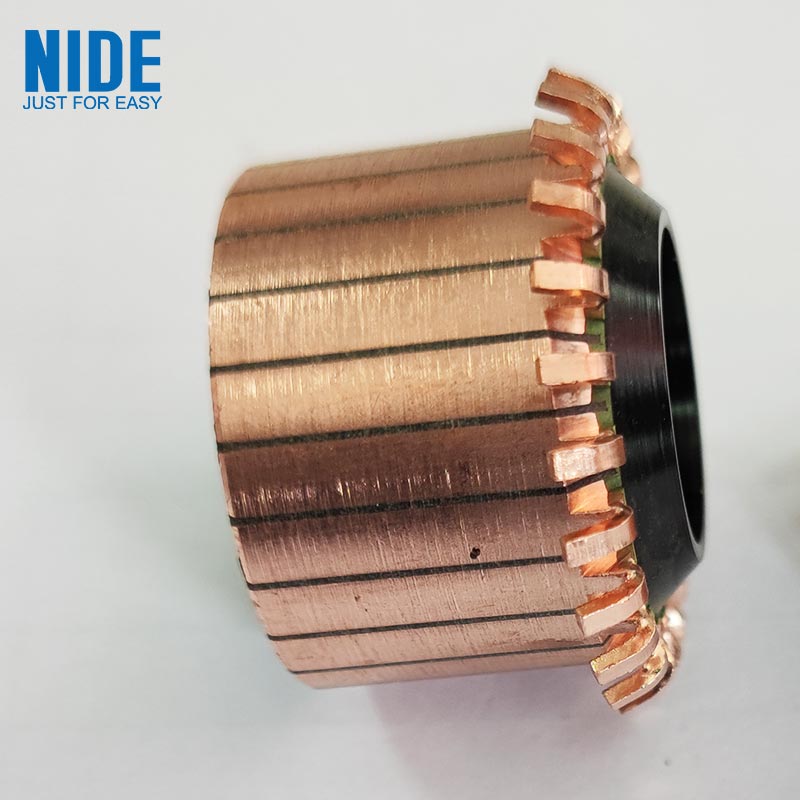

4. Larawan ng AC Motor Commutator
