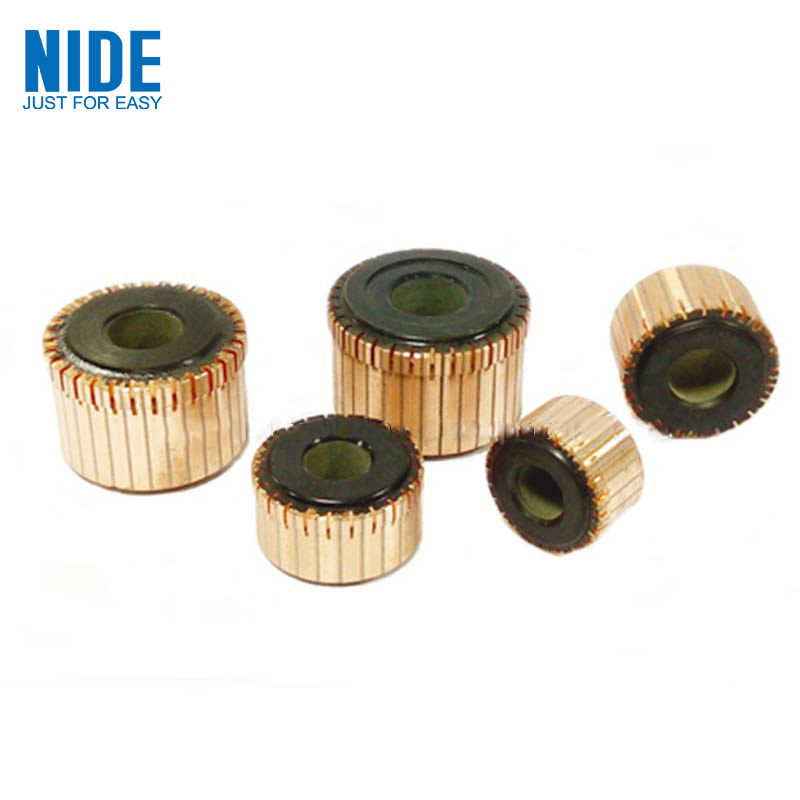

Ang Single motor commutator para sa AC motor ay Libre mula sa bula, bitak, o burr sa ibabaw.
Pagsusuri ng boltahe: bar to bar sa 500V, 1s, bar to bore sa 1500V, 1 min, nang walang breakdown o flashing.
Spin test: gawin ang spin test para sa commutator sa ilalim ng 140 centigrade, 5000RPM, 3min. Pagkatapos ng pagsubok, ang max deviation ng panlabas na diameter ay 0.015, ang bar at bar ay 0.005.
Insulation resistance: 500V, higit sa 50MΩ
Bahagi Blg. |
O.D (D) |
I.D (d) |
Kabuuang O D (D1) |
Bar No(N) |
Haba ng bar (L1) |
Kabuuang haba (L) |
JZQE-RS12-148 |
63 |
13.2 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-148B |
63 |
20 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-148C |
63 |
13.2 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-149 |
40 |
15 |
43 |
43 |
10 |
18.2 |
JZQE-RS31-150 |
44 |
12.08 |
23 |
10 |
12.5 |
|
JZQE-RS31-150B |
44 |
12.35 |
23 |
10 |
12.5 |
|
JZQE-RS31-150C |
44 |
12.06 |
23 |
10 |
12.5 |
|
JZQE-RS31-150D |
44.2 |
12.08 |
23 |
10 |
12.5 |
|
JZQE-RS31-150E |
44 |
12 |
23 |
10 |
12.5 |
|
JZQE-RS12-151 |
47.6 |
13.2 |
57 |
16 |
14 |
24.5 |
JZQE-RS12-151B |
47.6 |
13.2 |
57 |
16 |
14 |
22 |
JZQE-RS12-151C |
47.6 |
13 |
57 |
16 |
14 |
24.5 |
JZQE-RS12-151D |
47.6 |
13 |
57 |
16 |
14 |
22 |
JZQE-RS12-151E |
47.6 |
13.4 |
57 |
16 |
14 |
24.5 |
JZQE-RS31-169 |
38 |
12.08 |
26 |
10 |
14.3 |
|
JZQE-RS12-193 |
74 |
33 |
85 |
81 |
12 |
12 |
JZQE-RS12-247 |
19.5 |
4 |
7 |
3 |
5.5 |
|
JZQE-RS12-326 |
49 |
13.2 |
16 |
14 |
15 |
|
JZQE-RS32-348 |
58 |
24.1 |
25 |
|||
JZQE-RS32-464 |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS32-464B |
20.5 |
5 |
24.7 |
8 |
5.7 |
8.5 |
JZQE-RS32-464C |
20.5 |
5 |
24.7 |
8 |
5.7 |
8.5 |
JZQE-RS32-464D |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS32-464E |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS12-480 |
78 |
23 |
25 |
13 |
23 |
|
JZQE-RS32-508 |
20.5 |
3.175 |
25 |
8 |
4.2 |
8.5 |
JZQE-RS31-525 |
44.2 |
12.08 |
23 |
10 |
13 |
|
JZQE-RS31-525B |
44.2 |
12.35 |
23 |
10 |
13 |
|
JZQE-RS31-525C |
44.2 |
12 |
23 |
10 |
13 |
|
JZQE-RS32-555 |
20.5 |
3 |
24.7 |
8 |
5.7 |
8.6 |
JZQE-RS12-593 |
71.5 |
13.2 |
64 |
24 |
28 |
32.5 |
JZQE-RS11-608 |
52.5 |
16 |
19 |
6.5 |
16 |
|
JZQE-RS11-608B |
52.5 |
16 |
19 |
6.5 |
16 |
|
JZQE-RS32-618 |
23 |
4 |
28.5 |
10 |
6.5 |
10 |
JZQE-RS32-618B |
22.5 |
4 |
28 |
10 |
6.5 |
10 |
JZQE-RS32-651 |
47.6 |
13 |
56.5 |
16 |
12.5 |
18.5 |
JZQE-RS32-664 |
48 |
13.4 |
57.5 |
16 |
12.5 |
24.5 |
JZQE-RS12-688 |
59 |
24.1 |
58 |
25 |
34.9 |
22 |
JZQE-RS12-689 |
59 |
24.1 |
58 |
25 |
34.9 |
19.5 |
JZQE-RS32-717 |
47.6 |
13.3 |
56.5 |
16 |
12 |
24.77 |
JZQE-RS32-739 |
44.2 |
13.8 |
23 |
10 |
13 |
|
JZQA-RS12-752 |
31 |
11.5 |
40 |
21 |
25.5 |
28 |
JZQB-RS31-792 |
61 |
13.5 |
29 |
9 |
16 |
|
JZQE-RS31-796 |
44.2 |
9 |
23 |
10 |
12.5 |
|
JZQE-RS12-846 |
48.5 |
10.2 |
48.5 |
25 |
6 |
11 |
JZQE-RS32-854 |
47.6 |
13.2 |
56.6 |
16 |
7 |
22 |
JZQE-RS12-907 |
48.5 |
10.2 |
48.5 |
25 |
6 |
10 |
JZQE-RS12-926 |
64 |
20 |
60 |
31 |
5 |
17 |
Ginagamit ang commutator na ito sa AC motor, single phase na motor, sasakyang motor, motorcycle starter motor, power tool motor at micro special na motor.
Single motor commutator para sa AC motor
